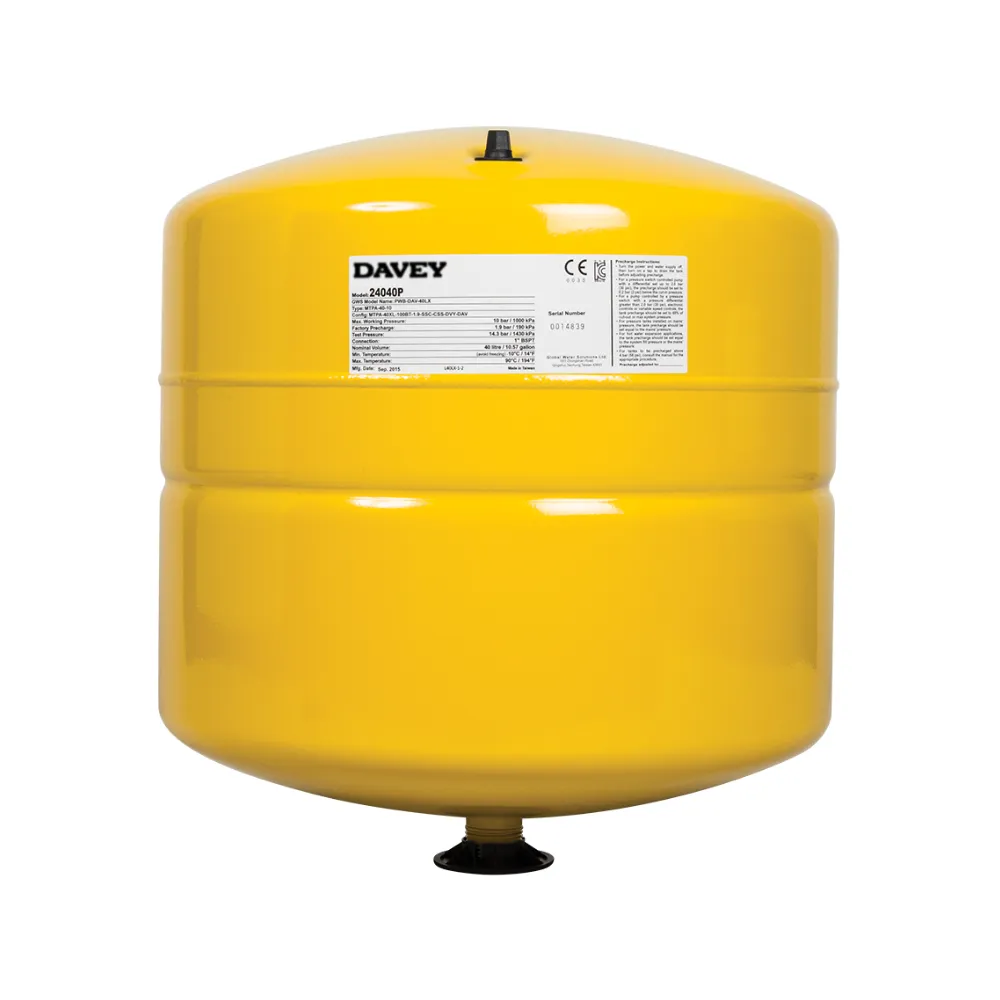

STEEL SUPERCELL PRESSURE TANKS
Used as storage units for water under pressure in household, farm or industrial applications, Pressure Tanks are an important consideration for solving the problem where pumps cycle on/off, which can prematurely burn pumps out.
Pressure tanks also allow for a pre-determined amount of water to be supplied before the pump starts, helping to halt water hammer issues.
With an enamel finish steel cell, Davey Supercell pressure tanks ensure a long life and protection against rusting and the effects of UV light.
Robust hydro-pneumatic water pressure vessels of captive diaphragm design.
Supercell C tanks can be used as storage units for water under pressure in:
- Household, farm or industrial water pressure systems.
- Hydronic heating system expansion tanks.
- Water hammer arrestor systems.
FEATURES:
All of the Supercell Pressure Tanks come with captive diaphragms held firmly in a central position, meaning there is less movement allowing for a thicker reinforced material than a bag or bladder tank.
The heavy duty butyl diaphragm meets all major worldwide requirements for potable water applications, and is safe and non-toxic.
MODELS:
- 24008P - 8L capacity, pipe mounting required, max. pressure 1000 kPa
- 24018P - 18L capacity, pipe mounting required, max. pressure 1000 kPa
- 24040P - 40L capacity, pipe mounting required, max. pressure 1000 kPa
- 24060P - 60L capacity, free standing, max. pressure 1000 kPa
- 24024HP25 - 24L capacity, pipe mounting required, max. pressure 2500 kPa
- 24100HP25 - 100L capacity, free standing, max. pressure 2500 kPa
Please refer to the documentation for all features and full technical specifications.
